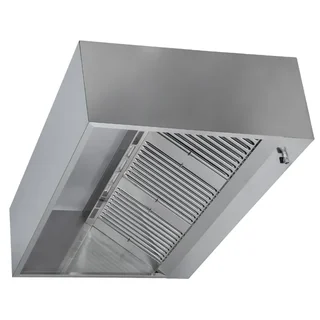

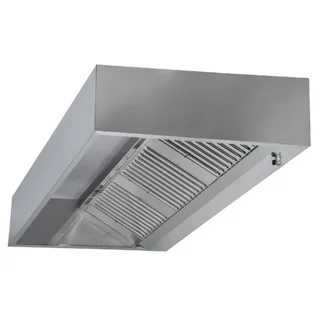

Deep Cube Hood 90 cm Depth with LED Lighting and Motorless - 5 m Length

Professional Cubic Architecture

This Dynasteel static extraction hood is a central piece of equipment for professional kitchens. Without an integrated motor, it offers an adaptable and high-performance solution for extracting cooking fumes. Its generous dimensions — 5000 mm × 900 mm × 450 mm — meet the needs of the most demanding food service establishments.

Premium Stainless Steel

Made from AISI 304 18/10 stainless steel, this hood ensures optimal corrosion resistance and impeccable sanitary conditions. The Scotch-Brite® satin finish offers a refined look while simplifying cleaning operations. Reinforced welds provide enhanced robustness for high-traffic environments.

Extraction Performance

The design incorporates a peripheral channel and profiled inner edges to effectively capture laden air. The labyrinth grease filters retain particles and cooking residues, maintaining a healthy working environment. An integrated grease drain tap significantly facilitates maintenance interventions.

Modular Assembly

The assembly includes two modules of 1600 mm and one central module of 1800 mm, for a total span of 5000 mm. Each unit delivers an extraction flow rate of 1800 m³/h. Side walls equipped with removable plates allow directing the extraction according to the required configuration, without the need for pre-drilling the hoods.

Technical Specifications
