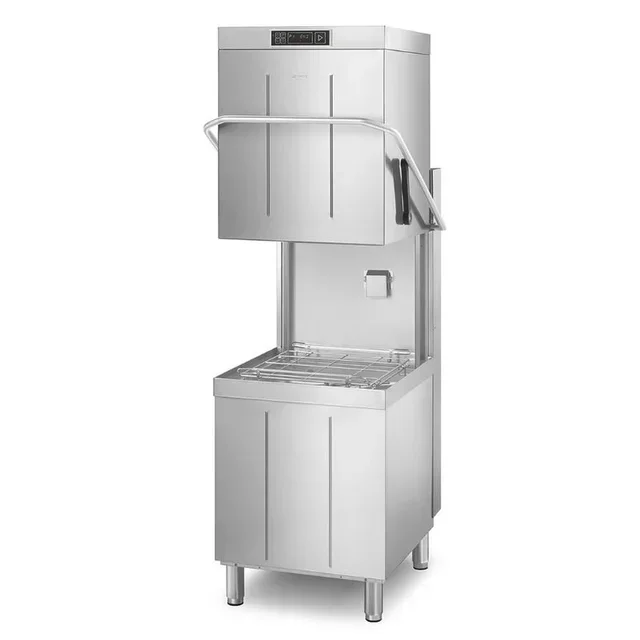

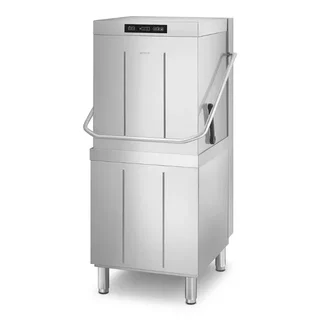

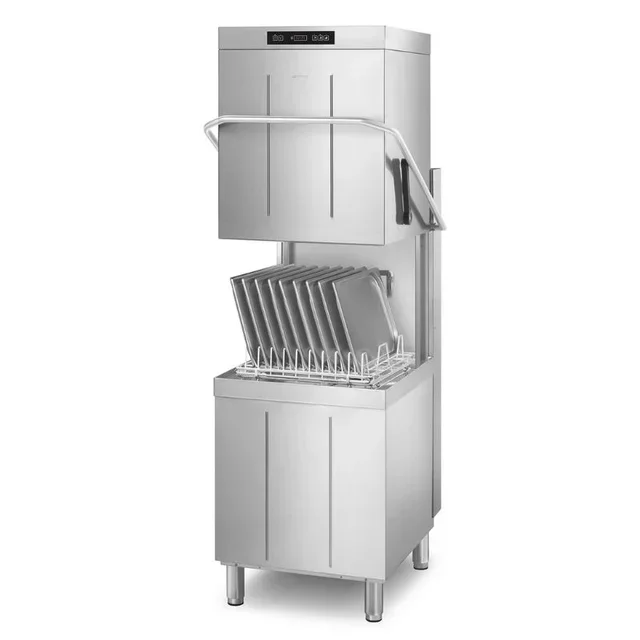

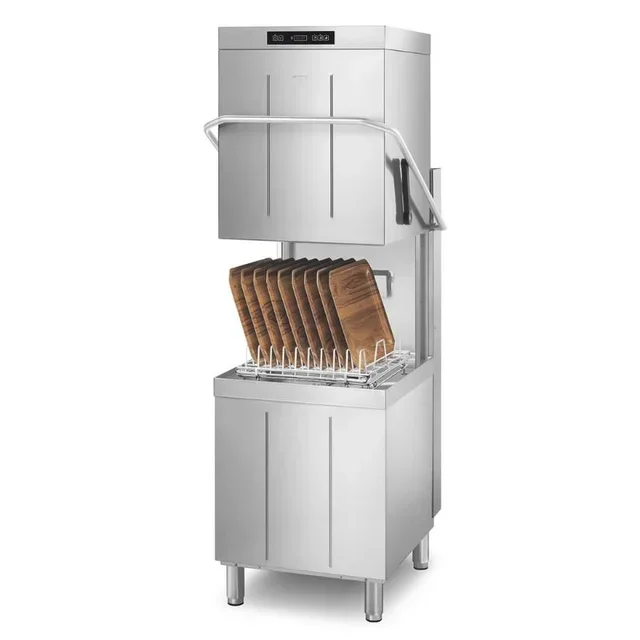

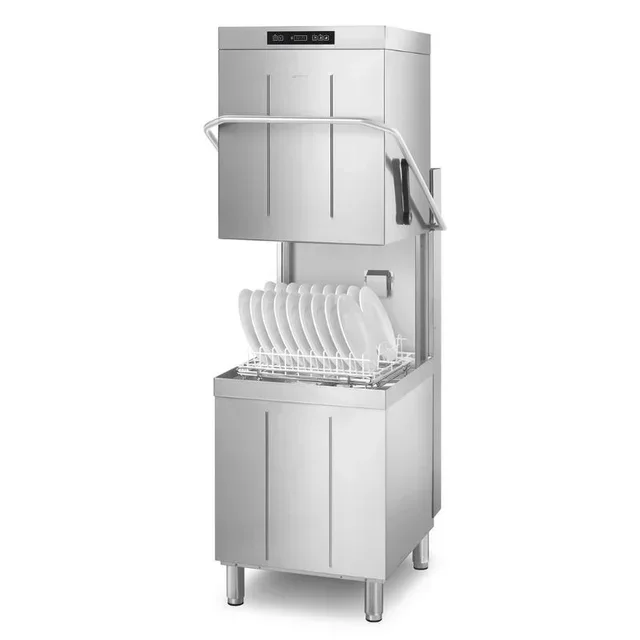

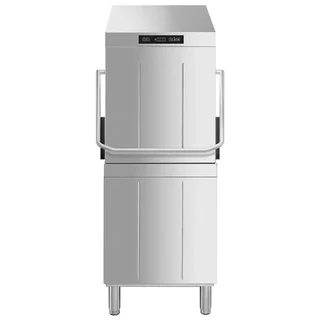

Professional hood dishwasher Ecoline 50x50 cm - Electronic control
Estimated delivery
from Thursday 9 April
Order within 7h 49min
Easy returns
Until 9 May 2026
- Brand
- SMEG
- SKU
- SGSPH503
- Category
- Door-Type Dishwasher
Performance & Programs
This professional hood-type dishwasher from the Ecoline range offers fast and efficient cleaning thanks to 3 programmable wash cycles: an express cycle of 60 seconds, a standard cycle of 120 seconds, and an intensive cycle of 180 seconds. The electronic design ensures precise management of each treatment phase.
Design & Robustness

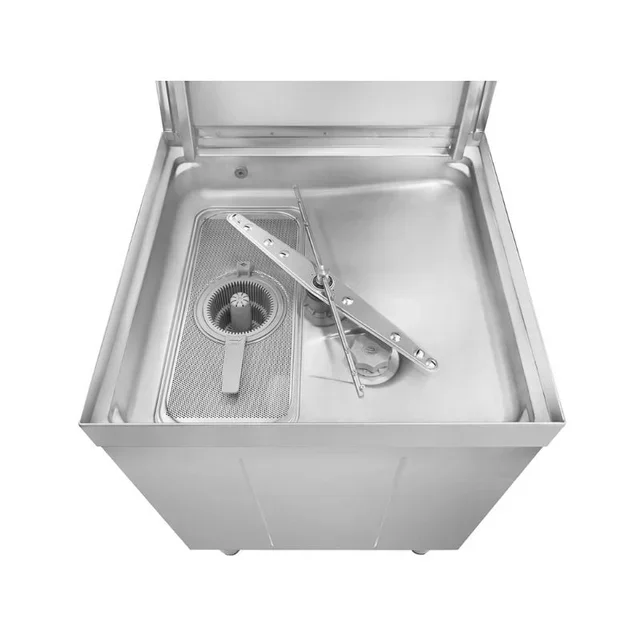

The monobloc structure is made of professional-grade stainless steel, combining a hood and a drawn double-walled tank with rounded corners for optimal hygiene. The spray system incorporates 2 wash arms and 2 rinse arms in stainless steel for complete coverage of the dishes.
Innovative Technologies
The "Soft Start" device protects your dishes by starting the pump gradually, eliminating the risks of overturning and mechanical shocks. The Thermostop system checks and maintains the rinse temperature at a constant level for guaranteed sanitary results. A specific "Drain and self-cleaning" cycle automates the regular maintenance of the tank.
Filtration & Dosing
The multi-layer filtration combines a stainless steel filter over the entire surface of the tank with double filtration in the suction sump including a pump protection microfilter. Chemical dosing is performed by peristaltic pump with electronic adjustment for precise and economical maintenance. The integrated drain pump allows partial renewal of the wash water at each cycle.
Additional Functions
The CLEAN WATER mode ensures total renewal of the water volume after each wash cycle. The EXTRA RINSE option extends the rinse phase for impeccable results on the most delicate items.
Equipment Supplied

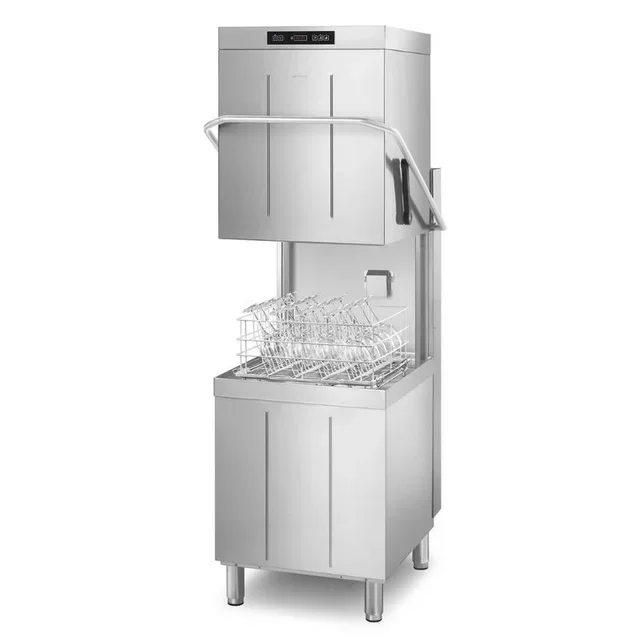

Delivered with a complete set of professional baskets: 1 flat-bottom basket, 1 plate basket, and 1 cutlery basket, all in 50 × 50 cm format.
Technical Specifications
| Tank capacity | 17 litres — heating element 2.2 kW |
| Boiler capacity | 8 litres — heating element 9 kW |
| Dimensions (W × D × H) | 620 × 736 × 1530/2007 mm |
| Water consumption/cycle | 3.2 litres |
| Useful loading height | 440 mm |
| Control panel | Electronic |
| Power supply | 400 V three-phase convertible 230V 1N 50 Hz |
| Weight | 120 kg |
| Basket format | 50 × 50 cm |
| Max dish height | 44 cm |

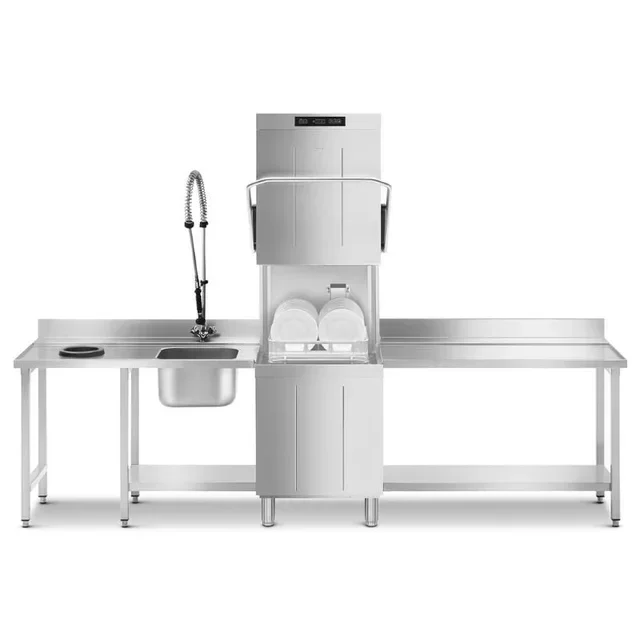

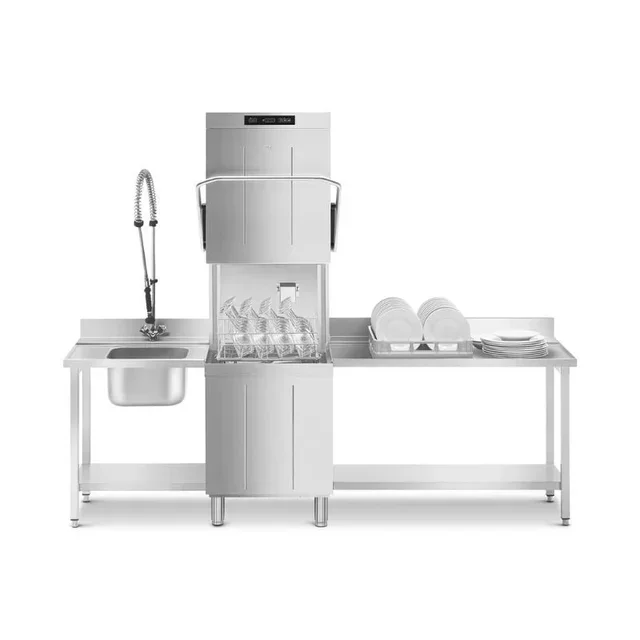

Important: This professional equipment requires the intervention of a technician before installation to assess plumbing constraints and any necessary modifications to surrounding mounting tables. Not a plug-and-play installation.
| Materials & Finish | |
| Material | Steel |
| External Finish | Stainless Steel |
| Stainless Steel Type | AISI 304L Steel |
| Power Supply & Pump | |
| Power Supply | 400 V |
| Drain Pump | With Pump |
| Water Softener | Without Softener |
| Door & Baskets | |
| Door Type | Swing |
| Door | Solid |
| Number of Doors | 1 |
| Number of Baskets | 3 |
| Basket Size | 50 × 50 cm |
| Dimensions | |
| Length | 670 mm |
| Depth | 736 mm |
| Height | 1530 mm |
| Warranty | |
| Warranty | 1 year Parts |
